PLC GEMO
| MODEL | AR2-G1-220VAC |
| Discrete Inputs | 12 DIGITAL INPUTS |
| Discrete OUTPUTS | 10 DIGITAL OUTPUTS (RELAY) |
| ANALOG INPUTS | 2 ANALOG INPUTS (0-10V) |
| NOTE | DIN Rail Mount Expansion Module for AR2 Series |

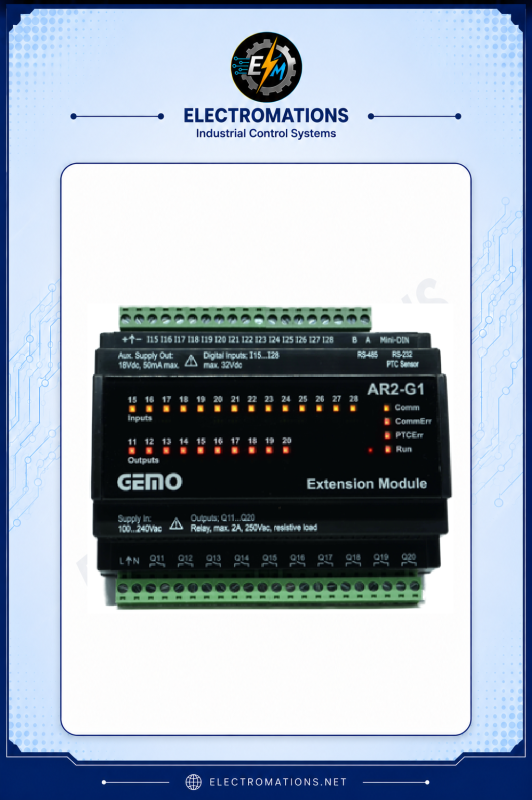

PLC GEMO AR2-G1 Extension Module
The AR2-G1 is a rail-mount expansion module designed to extend the I/O capacity of GEMO AR2 Smart Relay and PLC systems. It provides additional digital inputs, digital outputs, analog inputs, and temperature sensing capabilities, making it ideal for larger automation applications.
Key Features:
Expansion module for GEMO AR2 series controllers.
Up to 14 digital inputs.
Up to 10 digital outputs.
Up to 2 analog inputs (0–10V).
1 PTC temperature sensor input.
RS-485 communication with AR2 controllers.
Available in 18–32VDC and 100–240VAC supply options.
18VDC auxiliary output for field input devices.
DIN rail mounting design.
Suitable for industrial automation, machine control, HVAC systems, and process control applications.
? Full technical datasheet available in the Downloads section.
Technical Datasheet
Complete technical specifications, dimensions, wiring diagrams, and product information.
GEMO Ladder Editor Software
Free programming software for GEMO PLCs including ladder programming, simulation, and project download.
GEMO Ladder Editor User Manual
Step-by-step guide for installing, configuring, and using GEMO Ladder Editor software.
AR2 Sample Programs
Training examples and sample ladder programs for learning and testing purposes only.
