63A 230V Adjustable Over Under Voltage Protector (SVP-63A)

SVP-63A 63A Adjustable Under/Over Voltage Protect Relay Breaker LED

Descriptions:

    SINOTIMER SVP series automatic over-voltage protection device is suitable for single-phase AC voltage 230V, 50/60Hz, rated working current 63A and below users or loads. When the power situation is unstable, its protection function will be automatically activated.
    It is mainly used for the protection of over-voltage, under-voltage or over-current in the distribution line of the residential household box or the protection of single-phase power equipment.
    Its main feature is over-voltage or under-voltage in the line, overcurrent condition, the product can cut off the power supply instantaneously, protect the electrical equipment from being damaged; when the line voltage returns to normal, the protector can automatically turn on the power supply normally.

Features:

    Stable Performance: The circuit boards of products adopt good quality electronic components with long service life and more reliable performance.

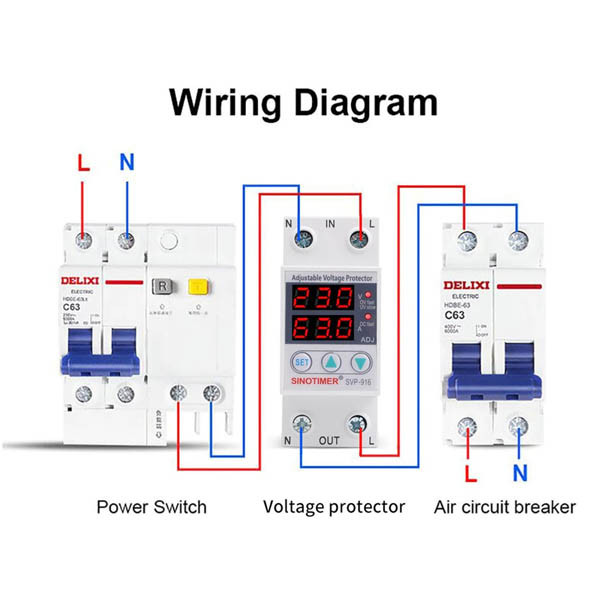

    Easy Installation: 35mm standard guide rail installation, easy to mount.
    Simple Operation: The automatic recovery over voltage and under voltage protective device complies with modular design standards, and its use and maintenance are very simple.

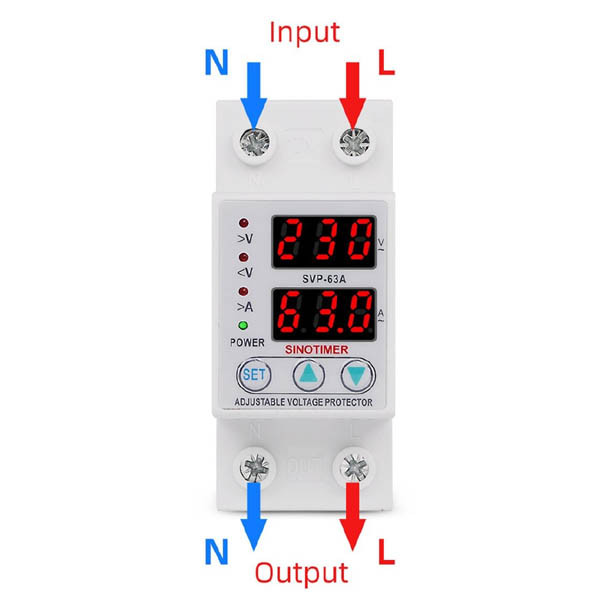

    Signal Light: The green indicator display, when the power is normal to supply. The red indicator display, when the power is over voltage or under voltage.
    Clear Read: Super clear LED display and ultra-wide viewing angle, voltage, and current reading can be easily seen at any time.
    Function: Once the voltage exceeds the limited range of products, it will automatically cut off so as to protect the safety of electrical equipment and persons. The device will re-supply when the power returns to normal.

Specifications:

    Name: Undervoltage/Overvoltage Protector
    Model: SVP-63A
    Rated AC Voltage: AC 230V~50Hz/60Hz
    Passing Max Current: 63A
    Over-voltage Protection Value Range: 230V~300(Default:270V)
    Under-voltage Protection Value Range: 210V~145V(Default:170V)
    Over-current Protection Value Range: 1A~63A(Default:63A)
    Recovery Time: 3~300s
    Over-voltage Protection: Yes
    Under-voltage Protection: Yes
    Over-voltage Protection Value Adjustable: Yes
    Under-voltage Protection Value Adjustable: Yes
    Fault Recovery Delay Time Adjustable: Yes
    Voltage Display(Voltage Measurement): Yes
    Current Display(Current Measurement): Yes
    Over-current Value Adjustable: Yes
    Automatic Recovery: Yes
    Installing: 35mm Din Rail
    Size: 58x36x65mm
