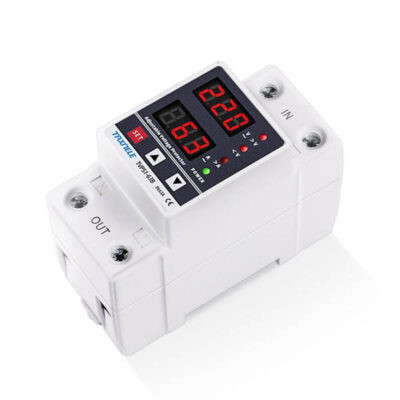

63A 230V Adjustable Over Under Voltage Protector (TVPS1-63B)

63A 230V Adjustable Voltage Protector Auto Recover Over Under Voltage Monitor Protect Limit over Current Protection Relay

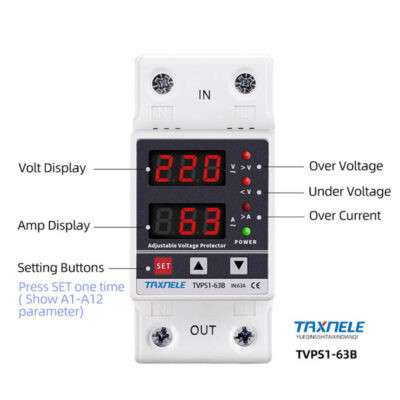

Functions:

    Over-voltage protection
    Under-voltage protection
    Over-current protection
    Automatic recovery
    Voltage display(voltage measurement)
    Current display (current measurement)

Product Parameters:

    Model number:TVPS1-63B
    Power supply:230VAC 50/60Hz
    Max.Loading power: 1~63A Adjustable(default:63A)
    Over-voltage protection value range: 230V~300~OFF (default:270V)
    Over-voltage recovery voltage range: 225V–295V (default:250V)
    Over-voltage protection action time: 0.1s~30s (default value:0.5s)
    Over-voltage r ecovery delay time: 1s~500s(default:30s)
    Under-voltage protection value range: 140V–210V –OFF(default:170V)
    Under-voltage recovery voltage range: 145V–215V (default:190V)
    Under-voltage protection action time: 0.1s~30s(default:0.5s)
    Under-voltage r ecovery delay time: 1s~500s(default:30s)
    Over-current adjustment range: 1-63A (default:40A)
    Over-current action range: 0.1~30 second (default:0.5s)
    Over-current r ecovery delay time: 1s~500s(default:30s)
    Power-on delay time: 1s~500s(default:10s)
    Power consumption : <2W
    Electric machinery life : 100,000 times
    Installation:35mm DIN rail

Noted: When you first connect the product, you have to wait about 10 seconds ( Power-on delay time:1 s~50 0s(default:10 s)), after the red light turns off, then the product will work.
