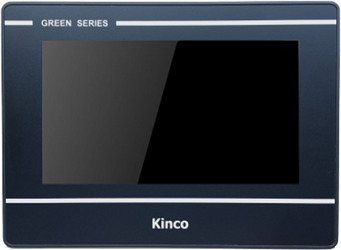

HMI KINCO 7 INCH (GL070)

Performance Specification

Display size :7" TFT

Display area :154.08(W)×85.92(H)

Resolution :800×480 px

Display color :16.77M true color

Visual angle :70/70/50/70(L/R/U/D)

Contrast: 500:1

Backlight :LED

Luminance :250cd/m²

LCD life :More than 30000 hours

Touch panel :4-wire precision resistance network (surface hardness 4H)

CPU :ARM RISC 32Bit 792MHz

Memory :128MB NAND flash + 128MB DDR3 RAM

RTC :Built-in RTC

External storage :1USB Host

Printer port :USB Host/Serial port

Ethernet :None

Program download :USB Slave/U Disk/Ethernet

Communication :COM0: RS232/RS485/RS422.COM2: RS232.

Electrical Specification

Input range: DC10V~DC28V

Power: 3.6W@24VDC

Allowable loss of power: <3ms

Insulation resistance: Greater than 50MΩ@ 500V DC

Hi-pot test: 500V AC 1 minute

Structure specification

Shell material: Engineering plastics

Shape size: 204×150×34 (mm)

Cutout size: 192×138 (mm)

Weight: 0.5Kg

Environmental Specification

Working temperature: 0~50℃

Working humidity: 10~90%RH (non-condensing)

Storage temperature: -20~60℃

Storage humidity: 10~90%RH (non-condensing)

Sine vibration test: 10~500Hz, 30m/s², X,Y,Z direction/hour

Cooling mode: Natural air cooling

Product Certification

Panel protection grade: Conforming to IP65 certification (4208-93)

CE certification: CE: EN61000-6-4:2007+A1:2011，EN61000-6-2:2005

Software

Configuration software: Kinco DTools V3.3 and above version

Notes: GL070is a replacement model for MT4434T or KT070.

The old version of the project can be opened directly by DTools software and downloaded to the new HM
